PSM INSTRUMENTATION LTD

BRONZE BOTTLE SWITCH

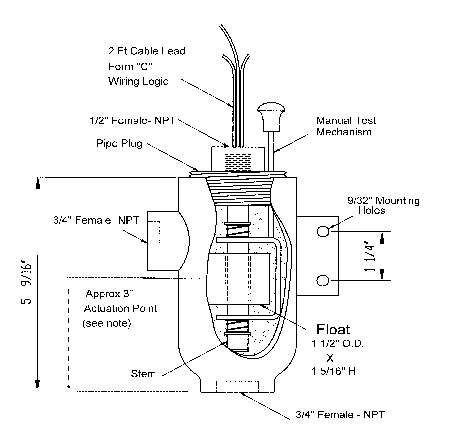

316 St Stl Float and manual lift / pull mechanism equipped with external mounting tab Bronze pipe plug Bronze bottle Brass stem ABS Approved
STANDARD SPECIFICATIONS
Max. Temperature:	250 Deg F
Max. Pressure:	100 PSIG
Switch:	S.P.D.T. reed form c
Max rating:	25* AC/DC
Max. voltage:	220v
Float s.g:	0.62
*Max watt resistive load = 25W Max watt inductive load = 12.5W
Bottle switch model BTL150/25BBS is designed to be installed externally to ships and industrial tanks. It may also be bolted to adjoining structures. This switch is primarily of bronze construction with a stainless float and a hermetically sealed SPDT reed switch. This ABS approved switch is also designed with a special feature, a manual lift / pull test mechanism for use in the field to determine if a switch is operational.   NOTE: The actuation point will vary depending on the temperature and the specific gravity of the individual liquid being detected. Internally mounting level / Bilge switches
