 BILGE / WATER LEVEL SWITCH

Compact all stainless steel design
DNV and ABS Type approved models
Manual check lever
Submersible IP68 Construction
Slosh & debris protection
Simple 2 bolt fixing

  Bilge switch

View and download general outline drawing in PDF format

View and download manual in PDF format

  Send me a datasheet

Bilge Switch














A compact but rugged bilge water alarm switch for Marine use on vessels of all sizes. The integral manual checking device conforms to class rules without complicating installation. Positioning and mounting is simple requiring only a two bolt fixing and the fully shrouded design prevents interference of operation from obstructions or floating debris.

SPECIFICATIONS

Type BLG 150 - Standard model
Material: type: 316 stainless steel : stem, float, test mechanism and body plates.
Slosh shield clear polycarbonate.
Cable: 2 metres of XLPE sheathed 3 -core with polyolefin boot.
Max. Temperature: 120C
Max. Pressure: 12 bar
Switch: S.P.C.O. reed form c
Max rating: 100watt AC/DC resistive load.
Max. voltage: 220v
Float s.g:  0.62
Type BLG250/25SS - ABS Approved model
ABS Certificate No 00-NO30314-X
Material: type 316 stainless steel : stem, float, test mechanism, body plates and slosh shield
Cable: 2 metres of heavy duty XLPE sheathed 18-3 -core rated 600 v to US spec DAC1048C
Max. Temperature: 125C
Max. Pressure: 12 bar
Switch:  S.P.C.O. reed form c
Max rating: 1.0 Amp AC/DC
Max. voltage: 150V ac/dc
Float s.g: 0.62
Maximum Watts 25 W
Type BLG250/100SS - DNV Approved model

DNV Certificate No: A -7362
Material: type 316 stainless steel : stem, float, test mechanism, body plates and slosh shield
Cable: 2 metres of heavy duty XLPE sheathed 18-3 -core rated 600 v to US spec DAC1048C
Max. Temperature: 125C
Max. Pressure: 12 bar
Switch:  S.P.C.O. reed form c
Max rating: 3 Amps AC/DC resistive load.
Max. voltage: 500V ac/dc
Float s.g: 0.62
Max Watts 100 W

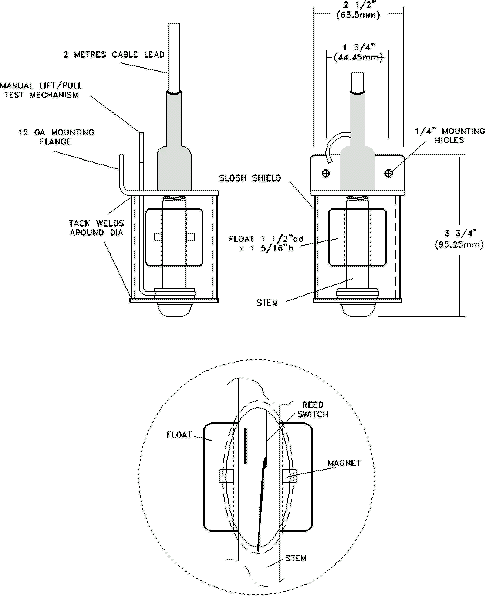

Bilge switch general arrangement
